Understanding Sling Models in AEM

Content Objective

In this chapter, you'll discover:

• What Sling Models are and the problem they solve
• How adaptation transforms Resources into usable Java objects
• When to use Resource adaptables vs Request adaptables
• How to master dependency injection techniques
• The model lifecycle and why @PostConstruct matters
• Why separation of concerns keeps your code maintainable
• How to troubleshoot adaptation and injection issues

The Journey So Far

In previous chapters of this series, we followed a request through several stages of the Sling framework.

We learned:

• Chapter 1: How requests reach AEM through Dispatcher
• Chapter 2: How Resource Resolution locates content
• Chapter 3: How Component Resolution finds the correct component
• Chapter 4: How Script Resolution determines which script executes

At this point, Sling has successfully:

• Located the resource (content)
• Identified the component (rendering logic)
• Found the script (HTL file)

But there's a gap we haven't addressed yet:

Key question:

• How does HTL actually get the data it displays?

A Simple Example

Consider a Title component.

1. An author enters a title through the component dialog: "Welcome To AEM"
2. The content is stored in the repository
3. HTL eventually renders that title on the page: <h1>Welcome To AEM</h1>

Something has to connect those pieces — retrieve the stored value, maybe validate or transform it, and hand it to HTL in a shape the template can work with.

That something is Sling Models.

Sling Models provide a clean way to adapt Sling objects (Resources and Requests) into Java objects that can be used by HTL.

Instead of writing Java code inside presentation templates, business logic is moved into dedicated model classes that are easier to maintain, test, and reuse.

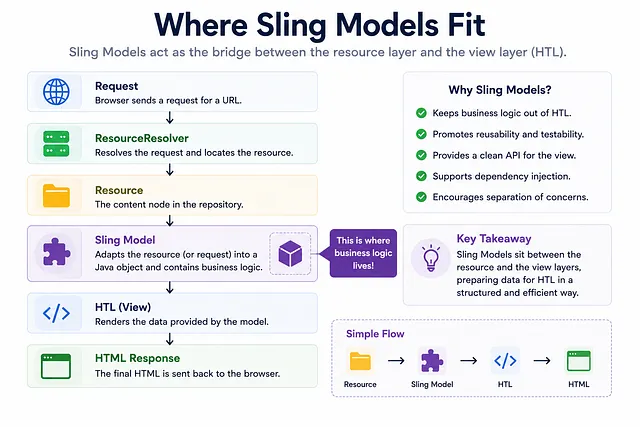

Where Sling Models Fit in the Rendering Pipeline

Sling Models sit between the resource layer and the presentation layer.

What Problem Do Sling Models Solve?

Before Sling Models

Before Sling Models became popular, developers often mixed rendering and business logic together.

Templates were responsible not only for displaying data but also for:

• Retrieving data
• Transforming data
• Applying business rules
• Integrating with external services

As applications grew, this approach became difficult to maintain and difficult to test.

Modern Approach: Separation of Concerns

Modern AEM development follows a cleaner separation of responsibilities:

Resources        → Provide content
Sling Models     → Provide business logic
HTL              → Provide presentation

Each layer focuses on a specific responsibility, making components:

• Easier to understand
• Easier to maintain
• Easier to test
• Easier to reuse

A typical rendering flow looks like this:

Resource (Content)
 ↓
Sling Model (Logic)
 ↓
HTL (Presentation)
 ↓
HTML (Output)

This separation is one of the reasons Sling Models became the recommended approach for modern AEM component development.

Why HTL Alone Is Not Enough

Consider a requirement where a title must always be displayed in uppercase.

Wrong approach:

<h1>${properties.jcr:title.toUpperCase()}</h1>

Problems:

• Business logic leaks into presentation
• Template becomes harder to read
• Logic is scattered across multiple templates
• Testing logic requires testing through the view

Correct approach:

@Model(adaptables = Resource.class)
public class TitleModel {

  @ValueMapValue
  private String title;

  public String getDisplayTitle() {
    return title != null ? title.toUpperCase() : "";
  }
}

HTL then remains focused on rendering:

<h1>${model.displayTitle}</h1>

Benefits:

• Business logic in dedicated class
• Easy to test independently
• Easy to maintain
• HTL stays simple

HTL remains focused on rendering while the model remains responsible for preparing the data.

Understanding Adaptation

This is fundamental to how Sling Models work.

What Is Adaptation?

Adaptation is the process of transforming one object type into another.

Example:

Resource resource =
  resourceResolver.getResource("/content/site/en/home/jcr:content/root/title");

TitleModel model =
  resource.adaptTo(TitleModel.class);

if (model != null) {
  String title = model.getTitle();
}

Breakdown:

Resource
  ↓
adaptTo(TitleModel.class)
  ↓
TitleModel (Java Object)

Important: Adaptation Is Not Guaranteed

Adaptation is not guaranteed to succeed.

If Sling cannot find a suitable adapter, adaptTo() returns null.

TitleModel model = resource.adaptTo(TitleModel.class);

if (model == null) {
  // Adaptation failed - Sling couldn't create the model
  // Possible reasons:
  // - Model class doesn't exist
  // - Required fields couldn't be injected
  // - Model registration failed
  // - Resource type doesn't match
}

This is why null checks remain important when working directly with adaptation APIs.

How Sling Creates Adapters

Adaptation does not create random objects.

Instead, Sling uses registered adapters to transform one object type into another.

When you annotate a class with @Model:

@Model(adaptables = Resource.class)
public class TitleModel {
  // ...
}

You're essentially saying: "Register me as an adapter that can transform a Resource into a TitleModel."

Sling then maintains a registry of adapters. When adaptTo() is called:

1. Check if there's a registered adapter
   Resource → TitleModel?
2. If yes, use it
3. If no, return null

Resource Adaptable vs Request Adaptable

One of the most misunderstood concepts in Sling Models.

Resource Adaptable: Use When Only Content Is Needed

@Model(adaptables = Resource.class)
public class TitleModel {

  @ValueMapValue
  private String title;

  public String getTitle() {
    return title;
  }
}

Use Resource adaptables when:

• You only need to access content properties
• You don't need request-specific information
• You're rendering simple components

Examples:

• Title Component
• Image Component
• Teaser Component
• Banner Component

Request Adaptable: Use When Request Information Is Needed

@Model(adaptables = SlingHttpServletRequest.class)
public class DynamicPageModel {

  @Inject
  private SlingHttpServletRequest request;

  public String getSelector() {
    return request.getRequestPathInfo().getSelectors()[0];
  }

  public String getSuffix() {
    return request.getRequestPathInfo().getSuffix();
  }
}

Use Request adaptables when:

• You need selectors, extensions, or suffixes
• You need request parameters or headers
• You need the current user information
• You're building dynamic or parameterized components

Examples:

• Product listing (filtered by parameters)
• Search results (with query parameters)
• Headless API endpoints (with selectors/extensions)
• User-specific content (from request context)

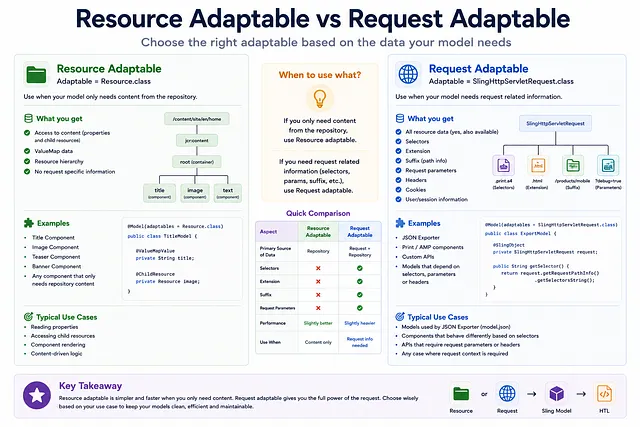

Choosing Between Resource and Request

Understanding Dependency Injection

Sling Models use annotations to inject dependencies into model fields.

@ValueMapValue - Read Content Properties

Read properties from the Resource's ValueMap:

@Model(adaptables = Resource.class)
public class ArticleModel {

  @ValueMapValue
  private String title;  // Reads jcr:title

  @ValueMapValue(name = "jcr:description")
  private String description;  // Custom property name

  public String getTitle() {
    return title;
  }

  public String getDescription() {
    return description;
  }
}

How it works:

Resource
 ↓
ValueMap
 ↓
@ValueMapValue fields populated

@ChildResource - Access Child Resources

Access resources nested under the current resource:

@Model(adaptables = Resource.class)
public class ContainerModel {

  @ChildResource
  private Resource image;  // Access child resource named "image"

  public Resource getImage() {
    return image;
  }
}

Repository structure:

/content/site/home/jcr:content/root/container
  ├─ image (child resource)
  ├─ title
  └─ description

@OSGiService - Inject Services

Inject OSGi services into your model:

@Model(adaptables = Resource.class)
public class EmailModel {

  @OSGiService
  private EmailService emailService;

  @OSGiService(filter = "slingFilterName=admin")
  private SlingFilter adminFilter;

  public void sendEmail(String to, String subject) {
    emailService.send(to, subject, "Body");
  }
}

This allows models to:

• Access business services
• Call external APIs
• Perform complex operations
• Integrate with AEM services (ResourceResolver, Query API, etc.)

@SlingObject - Inject Sling Objects

Inject commonly used Sling objects:

@Model(adaptables = SlingHttpServletRequest.class)
public class DynamicModel {

  @SlingObject
  private ResourceResolver resourceResolver;

  @SlingObject
  private SlingHttpServletRequest request;

  @SlingObject
  private Resource resource;

  public String getResourcePath() {
    return resource.getPath();
  }

  public Resource loadOtherResource(String path) {
    return resourceResolver.getResource(path);
  }
}

What Happens During Model Creation?

Understanding the model lifecycle is critical.

Model Lifecycle

1. Step 1: Resource/Request Found
2. Step 2: Model Instance Created
3. Step 3: Dependencies Injected (@ValueMapValue, @OSGiService, etc.)
4. Step 4: @PostConstruct Method Executed
5. Step 5: Model Ready for Use

Example: Complete Lifecycle

@Model(adaptables = Resource.class)
public class ProductModel {

  @ValueMapValue
  private String title;

  @ValueMapValue
  private Double price;

  @OSGiService
  private PricingService pricingService;

  private Double discountedPrice;

  @PostConstruct
  private void init() {
    // This runs AFTER all injections are complete
    if (price != null) {
      // Apply discount logic
      discountedPrice = pricingService.applyDiscount(price);
    }
  }

  public String getTitle() {
    return title;
  }

  public Double getDiscountedPrice() {
    return discountedPrice;
  }
}

Why @PostConstruct Matters

@ValueMapValue
private String title;  // Injected by Sling
↓
@PostConstruct
private void init() {  // Called by Sling after injection
  if (title != null) {
    // Now we can safely use injected fields
    pageTitle = title.toUpperCase();
  }
}

Important: All injections happen before @PostConstruct executes.

This means:

• Injected fields are available in @PostConstruct
• You can validate injections
• You can perform initialization logic
• You can throw exceptions if required fields are missing

Real Component Example: Complete Flow

Let's trace a Title component from author to HTML.

Repository Structure

/content/site/en/home/jcr:content/root/title
  jcr:title = "Welcome To AEM"
  sling:resourceType = "company/components/title"

Sling Model

@Model(adaptables = Resource.class)
public class TitleModel {

  @ValueMapValue
  private String title;

  @PostConstruct
  private void init() {
    if (title != null) {
      title = title.trim();
    }
  }

  public String getTitle() {
    return title != null ? title : "No Title";
  }
}

HTL Template

<h1>${model.title}</h1>

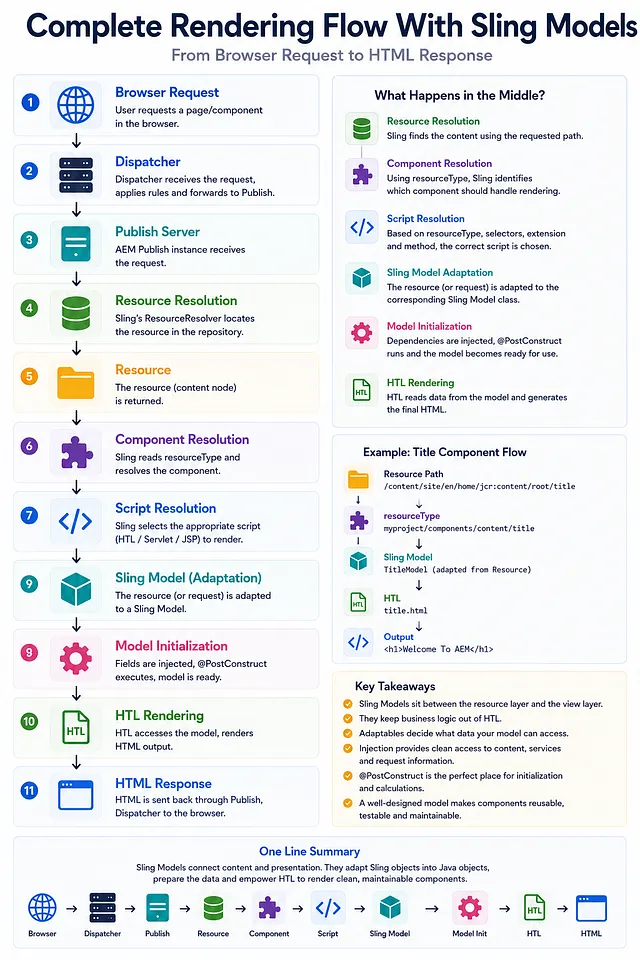

Complete Flow

Common Sling Model Mistakes

Mistake #1: Not Checking for Null After Adaptation

// WRONG
TitleModel model = resource.adaptTo(TitleModel.class);
String title = model.getTitle();  // NullPointerException if adaptation failed!

Correct:

TitleModel model = resource.adaptTo(TitleModel.class);
if (model != null) {
  String title = model.getTitle();
}

Mistake #2: Using @ValueMapValue Without Defaults

// RISKY - throws exception if field is missing
@ValueMapValue
private String optionalField;

Better:

// Safe - uses default value if missing
@ValueMapValue
private String optionalField = "default";

Or specify required:

// Throws if required and missing
@ValueMapValue(required = true)
private String requiredField;

Mistake #3: Not Using @PostConstruct for Validation

// WRONG - relying on getter to handle null
public String getTitle() {
  if (title == null) {
    return "No Title";  // Checked on every call
  }
  return title;
}

Better:

@PostConstruct
private void init() {
  if (title == null) {
    title = "No Title";  // Set once during initialization
  }
}

public String getTitle() {
  return title;  // Always guaranteed to have a value
}

Mistake #4: Mixing Resource and Request Adaptables

// WRONG - trying to use Request object on Resource adaptable
@Model(adaptables = Resource.class)
public class MyModel {

  @Inject
  private SlingHttpServletRequest request;  // Will be null!
}

Correct:

@Model(adaptables = SlingHttpServletRequest.class)
public class MyModel {

  @Inject
  private SlingHttpServletRequest request;  // Will be injected
}

Troubleshooting: Component Shows Empty Output

When a component renders but shows no content:

Debugging Example

@Model(adaptables = Resource.class)
public class DebugModel {

  @ValueMapValue
  private String title;

  @PostConstruct
  private void init() {
    // Add logging to debug
    if (title == null) {
      System.out.println("WARNING: title is null!");
    }
  }

  public String getTitle() {
    return title != null ? title : "(empty title)";
  }
}

Check logs to see if field injection succeeded.

Sling Models and Headless AEM

Sling Models are not limited to HTL rendering.

They're also heavily used by the AEM JSON Exporter.

How Headless AEM Uses Sling Models

When a request like this executes:

/content/site/en/home.model.json

Sling does the following:

Request parsed
 ↓
Extension = json, Selector = model
 ↓
ResourceResolver finds resource
 ↓
Sling adapts resource to model
 ↓
JSON exporter serializes model to JSON
 ↓
Response sent as JSON

Result:

{
  "title": "Welcome To AEM",
  "description": "Our homepage",
  "image": "image.jpg"
}

Same Model, Multiple Outputs

The same Sling Model can support both traditional and headless rendering:

/home.html          → HTL rendering
/home.model.json    → JSON export (Headless)
/home.model.xml     → XML export

For teams building React, Next.js, or mobile applications on top of AEM, Sling Models often become the foundation of the API layer.

Complete Rendering Flow With Sling Models

Here's the end-to-end flow combining everything we've learned:

Why Architects Care About Sling Models

Experienced AEM developers don't think of Sling Models as simple data containers.

They view Sling Models as the business layer between content and presentation.

Resources        → Content Storage
Sling Models     → Business Logic (HERE)
HTL              → Presentation

Why This Separation Matters

• Maintainability — Logic is centralized in dedicated classes
• Testability — Models can be tested independently of HTL
• Reusability — Same model used for HTL, JSON, XML exports
• Scalability — Complex logic doesn't leak into templates
• Evolution — Business logic can change without touching views

When troubleshooting component rendering issues, architects often verify the model layer before investigating HTL because many rendering problems originate from:

• Adaptation failures
• Injection problems
• Model initialization errors

If the model isn't adapting correctly, there's no point investigating HTL.

Key Takeaways

• Sling Models bridge content and presentation through adaptation
• Adaptation transforms Resources/Requests into Java objects
• Resource adaptables are used when only content is needed
• Request adaptables are used when request information is needed
• @ValueMapValue injects content properties
• @OSGiService injects OSGi services
• @PostConstruct runs after all injections for initialization
• Null checks are essential because adaptation can fail
• Separation of concerns improves maintainability and testability
• Same model can be used for HTL rendering and headless APIs

What Happens Next?

In this chapter, we learned how Sling Models adapt Resources into business objects that HTL can consume.

We've now covered the complete Sling rendering pipeline:

• Chapter 1: Request Flow & Dispatcher
• Chapter 2: Resources & ResourceResolver
• Chapter 3: Component & Script Resolution
• Chapter 4: URL Decomposition
• Chapter 5: Sling Models (Adaptation & Injection)

You now understand the complete architecture behind every page rendered in AEM.

From here, you're ready for advanced topics:

• HTL Deep Dive — Template expressions and controls
• Custom Servlets — Building REST APIs
• Advanced Queries — QueryBuilder and JCR queries
• Workflows & Replication — Content publishing
• Performance Tuning — Caching and optimization

The foundation is complete. The advanced topics will build naturally on top of it.

Want to See This Applied to a Real Problem?

Read Real-World Scenario — When a Sling Model Earns Its Place (and When ValueMap Is Enough) for the null-adaptation and over-injected-model problems that show up once a project has dozens of models, plus honest criteria for when raw resource/ValueMap access is simpler.

Also see Real World Scenarios: The Optional Field That Wasn't Optional for a concrete NullPointerException that comes from a very common gap: an @Optional injected field handled correctly in @PostConstruct's "present" branch, but with no fallback for the "absent" branch — and why the fix belongs in both the initializer and the getter, not just one of them.
